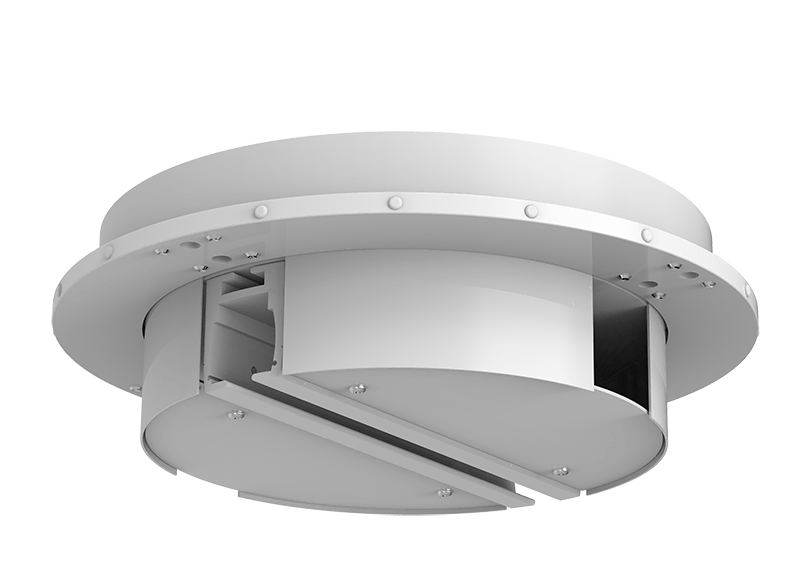

PLS Turntable

The PLS Turntable can be applied in a rail crossing. The Turntable is equipped witch our unique Sensor-Motion technology and is available in a 3- and 4-way version.

Technical specications
Usage In crossing of standard railprofile. Available in 3-or 4-way version
Connecting rail     55x65 mm (1383)
Operation Sensor-activated
Compatibility     PLS turntable must only be used in combination with PLS rail profile
Weight and materials     9,2 kg. Aluminium and galvanised steel, standard powder-coated in RAL 9010
Electrical specs     Power supply: 24 V, max 3,5 A. Use only in combination with PLS approved power supply. Activation by PLS Sensor-Motion technology
Model number     3-way 1001, 4-way 1002
Marking CE-marked as a part of the PLS rail system. In accordance with: EN: 10535:2006 Directive 93/42/EEC



Sensor Motion

The PLS Turntable is equipped with the unique Sensor-Motion technology. Because of this technology the Turntable is extremely easy to operate. No wall switches or rail contacts but smart sensors detecting the hoist and activate a motion to change direction or connect segments of track. E ectively this means not only more comfort, also more attention for the patient instead of operating a track system.
