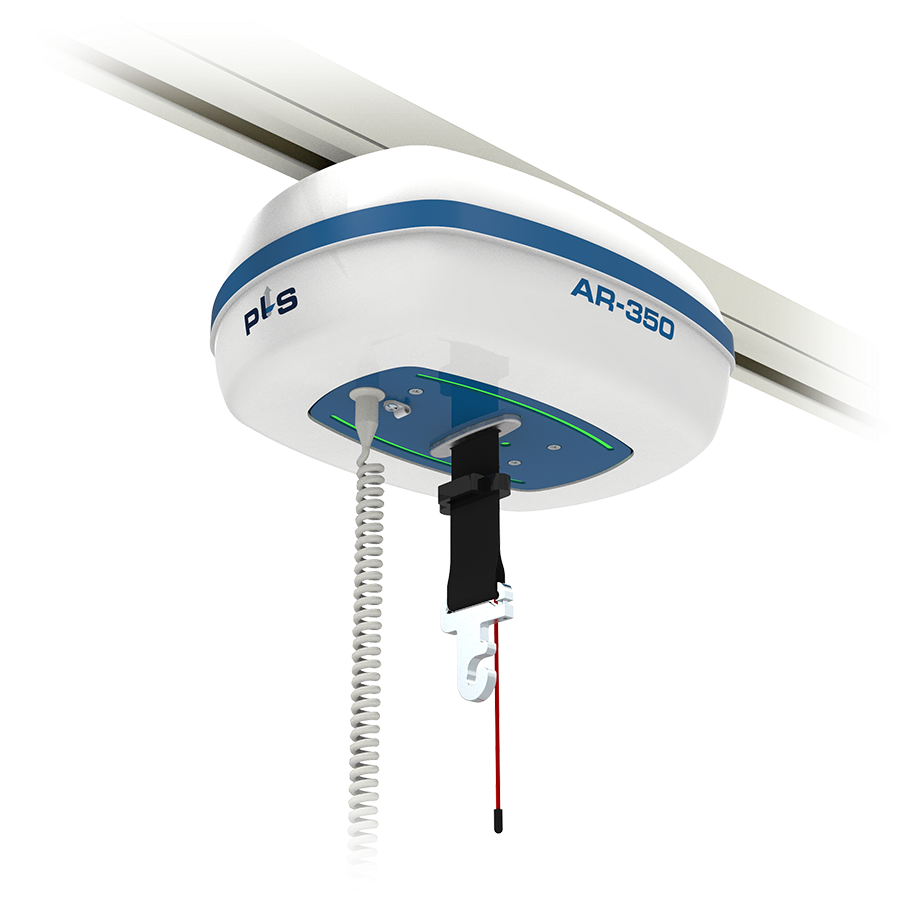

AR-350

The AR-350 is a heavy duty Ceiling Hoist for a safe and respectful patient movement. The high-quality Ceiling Hoist is extremely low noise in use, both in lifting and moving through the rail.  The standard features are:

  • An advanced battery protection system.
  • Auto stand-by when not used for a while.
  • No power consumption in stand-by.
  • Slow start and stop function for high lifting comfort.
  • Prepared for an electric spreader bar.
  • Charged by hand control, using a magnetic wall charger.
  • Double steering trolley for an easy and smooth transfer through the rail.
Technical specifications AR-350
Lift capacity (swl)350 kg
Dimensions377 x 297 x 135 mm
Weight15,7 kg
PowerBattery charged; 24 V/DC, 10 Ah
Minimal belt length140 mm
Maximal belt length2260 mm
Lifting velocity35-70 mm/sec
Lifts per full charge>80 @200 kg, >35 @350 kg
Charging time8 Hours
